Overview

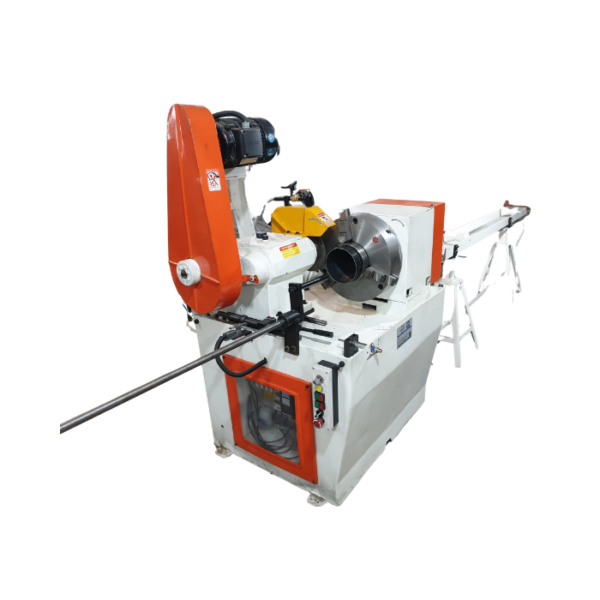

The 300mm Semi-Automatic Rotating-Tube Cold Saw represents a massive leap forward in large-diameter pipe processing. Specially engineered for heavy-duty tubes ranging from 130mm to 300mm, this machine defies conventional cold-sawing limitations. Instead of utilizing an oversized, prohibitively expensive saw blade to plunge through a static pipe, this machine rotates the tube itself against a stationary, smaller-diameter HSS saw blade. This unique engineering approach offers unprecedented cost savings while maintaining industrial-grade cutting power.

The Innovation: Small Blade, Large Diameter Capacity

In conventional cold sawing, cutting a 300mm pipe requires an enormous blade, which is not only expensive to purchase and resharpen but also prone to deflection. By rotating the workpiece, the blade only needs to penetrate the wall thickness (up to 12mm) rather than the entire diameter of the pipe. This allows the machine to use a much smaller, standard-sized HSS blade. Tooling costs are drastically reduced, blade life is extended, and power consumption is optimized, making this machine one of the most economical large-diameter cutters on the market.

Heavy-Duty Drivetrain & 12mm Wall Piercing Power

To handle the immense torque required to cut heavy-walled industrial pipes, the machine is equipped with an ultra-robust, backlash-free helical gear set. This high-efficiency gearbox ensures smooth, chatter-free power transmission. The system provides the rigid stability needed to pierce through tough materials with wall thicknesses up to 12mm effortlessly, leaving a clean, burr-free, and perfectly square edge.

Semi-Automatic Operation & Precision Clamping

• Manual True-Chuck Clamping: The tube is secured using a heavy-duty, manually operated true chuck. This ensures perfect concentricity and a rock-solid grip, preventing tube slippage or deformation during rotation.

• Pneumatic Cylinder Slide Control: The forward feed and backward retraction of the cutting head are entirely automated via high-load pneumatic cylinders. This semi-automatic cycle ensures consistent feed rates, reduces operator fatigue, and guarantees highly repeatable cycle times.

Key Technical Specifications

• Cutting Capacity Range: 130mm to 300mm outer diameter (OD).

• Maximum Wall Thickness: Up to 12mm.

• Cutting Mechanism: Rotating tube with stationary, small-diameter HSS blade.

• Gearbox: Heavy-duty, backlash-free helical gear drive.

• Feed Actuation: Semi-automatic via dual-action pneumatic cylinders.

• Workholding: Precision manual true-chuck system.

• Operational Benefit: Ultra-economical tooling costs with high-rigidity performance.
