Maxsaw 750 Auto

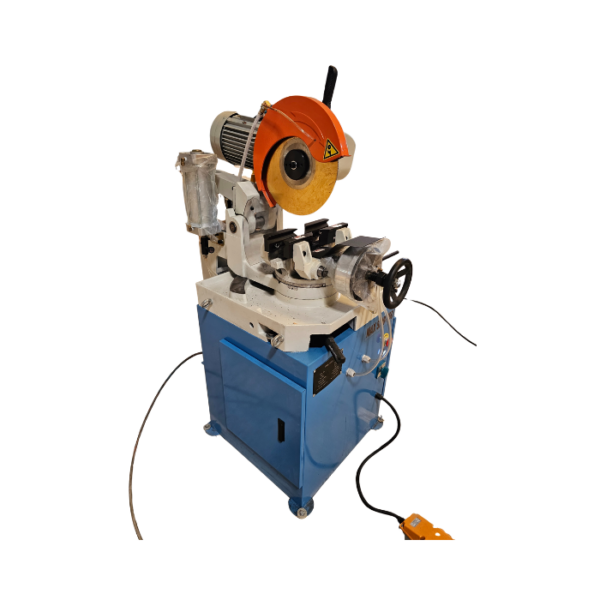

The Steel Magic MAXSAW-750 is a semi-automatic, pneumatic circular cold saw engineered for fast, burr-free cutting of pipes, tubes, and solid bars. Featuring automated pneumatic clamping and auto-cutting feeds via a precise hydro-pneumatic regulating system, it delivers flawless, industrial-grade cuts with minimal operator fatigue. Equipped with dual-speed settings (60/120 RPM) for seamless switching between Mild Steel (MS) and Stainless Steel (SS), a rapid swivel head for angles from $90^\circ$ to $45^\circ$ , and a self-centering double clamping vice, the MAXSAW-750 is the ultimate efficiency upgrade for metal fabricators seeking high precision and safety.

Maximize your workshop’s productivity and cutting precision with the Steel Magic MAXSAW-750 Semi-Automatic Pneumatic Circular Cold Saw. Designed as a robust, high-performance solution for heavy-duty metal fabrication, this machine streamlines your workflow by combining automated pneumatic clamping and automatic cutting into a seamless, high-speed operation.

At the heart of the MAXSAW-750 is a rigid Grade 25 casting and steel body housing a heavy-duty gearbox with an all-alloy hardened steel gear train, ensuring long-term structural integrity and vibrations-free, flawless cutting. Operators can precisely control the saw head’s stroke speed using a hydro-pneumatic cylinder paired with an adjustable feed regulating valve, protecting the max 315mm saw blade from premature wear while delivering pristine edge finishes.

The machine is engineered with extreme versatility in mind: its dual-speed system (60/120 RPM) makes it highly efficient at processing mild steel, stainless steel, and tougher alloy bars alike. Need to switch to miter cuts? The saw head rapidly swivels from $90^\circ$ down to $45^\circ$ for swift taper cutting. Safety and accuracy are further anchored by a robust self-centering double clamping vice that locks materials firmly in place from both sides, paired with an integrated $1/8$ HP high-efficiency coolant pump system to ensure cool, burr-free cuts and extended blade life.

Key Technical Specifications & Capacities

Parameter	Specification
Model	MAXSAW-750 (MC-750 ACPV)
Automation & Feeds	Semi-Automatic Pneumatic Clamping & Cutting
Main Motor / Electricals	5 HP Main Motor
Speed Settings	Dual Speed (60 / 120 RPM)
Max Saw Blade Size	$315\text{mm (Max)} \times 3/2.5/2/1.5\text{mm} \times 32\text{mm}$
Machine Dimensions / Weight	$740 \times 600 \times 1400\text{mm}$

Cutting Capacity Matrix (A Buyer’s Guide)

Circular Tubes: ≤φ90*3mm
Square Pipes: ≤80*80*2mm
Rectangle Pipes: ≤80*80*2mm
Angle Iron: ≤80*90mm
Solid Round Bars: ≤φ40mm
Solid Square Bars: ≤40*40mm

Why Buy the MAXSAW-750? (Value Propositions)

Burr-Free, Ready-to-Weld Cuts: Unlike abrasive chop saws, cold saws leave a clean, mill-like finish that eliminates the need for a secondary grinding or deburring stage.
Drastically Reduced Setup Times: The unified single-point self-centering jaw system locks different material sizes instantly without losing track of your true center line.
High Operator Safety: Auto-clamping means hands stay clear of the cutting zone, while the enclosed heavy-duty blade guard guards against sparks or blade debris.
Complete Out-of-the-Box Kit: Ships standard with a premium set of clamping jaws, a complete tool kit, spare seals, and fully integrated internal 415V electrical wiring.
