Overview

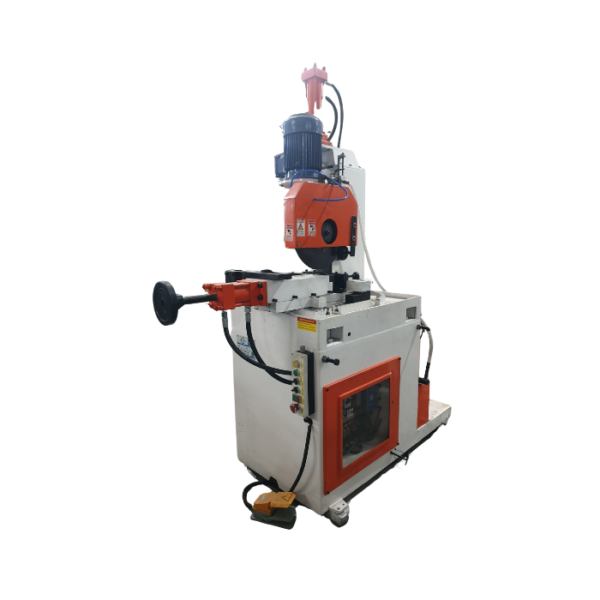

When processing thick-walled, large-diameter industrial piping, pneumatic systems fall short of the required force. This Hydraulic Semi-Automatic Pipe Cutting Machine is purpose-built to fill that gap. Driven by a robust central hydraulic power pack, it automates the material workholding and cutting cycle to deliver maximum torque, effortless penetration, and prolonged blade life when tackling tough structural metals.

Fully Hydraulic Clamping & Cutting Operation

The machine’s superior performance is anchored by its heavy-duty dual-action hydraulic systems:

• Hydraulic Clamping Vise: High-pressure hydraulic cylinders clamp the large-diameter pipe with immense force. This eliminates any risk of material spinning, vibration, or slippage during heavy cuts, ensuring operator safety and absolute dimensional accuracy.

• Hydraulic Feed Control: The down-feed cutting stroke is entirely controlled by a rigid hydraulic cylinder. This provides a perfectly uniform, vibration-free blade descent that easily shears through wall thicknesses up to 6mm without stalling or binding.

Heavy-Capacity Tooling & Angular Versatility

The machine features an oversized spindle gearbox engineered to mount massive High-Speed Steel (HSS) blades up to 450mm in diameter. This large blade capacity, paired with a heavy-duty swivel head mechanism, allows the machine to effortlessly transition between standard 90° straight cuts and sharp 30° miter angles. The smooth angular adjustment mechanism locks rigidly into place, ensuring repetitive accuracy on thick-walled tubing across continuous shifts.

Technical Features at a Glance

Applications

• Thick-Walled Structural Cutting: Slicing through heavy-duty structural hollow sections (SHS/RHS) used in load-bearing frameworks.

• Heavy Angle and Miter Cutting: Preparing large pipes for heavy weld-prep joints, structural trusses, and intersection piping.

• High-Volume Solid/Pipe Cutting: Continuous, repetitive cutting of large carbon steel, alloy steel, and stainless steel industrial pipes.

Target Industries

• Oil & Gas and Fluid Handling: Precision cutting of large-diameter process piping, distribution manifolds, and high-pressure fluid lines.

• Shipbuilding & Marine Engineering: Fabricating heavy structural frames, ship railings, internal pipe networks, and dock scaffolding.

• Heavy Infrastructure & Construction: Cutting massive pillars, structural columns, overhead trusses, and bridge components.

• Agricultural Equipment Manufacturing: Processing thick-walled chassis tubes and structural frames for tractors, harvesters, and earth-moving machinery.

• Process Plant Engineering: Cutting pipelines for chemical plants, water treatment facilities, and power generation units.
