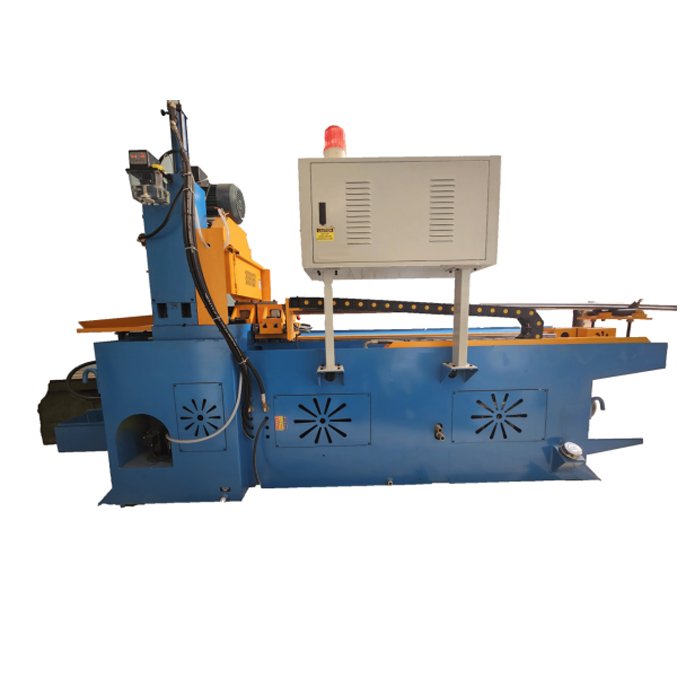

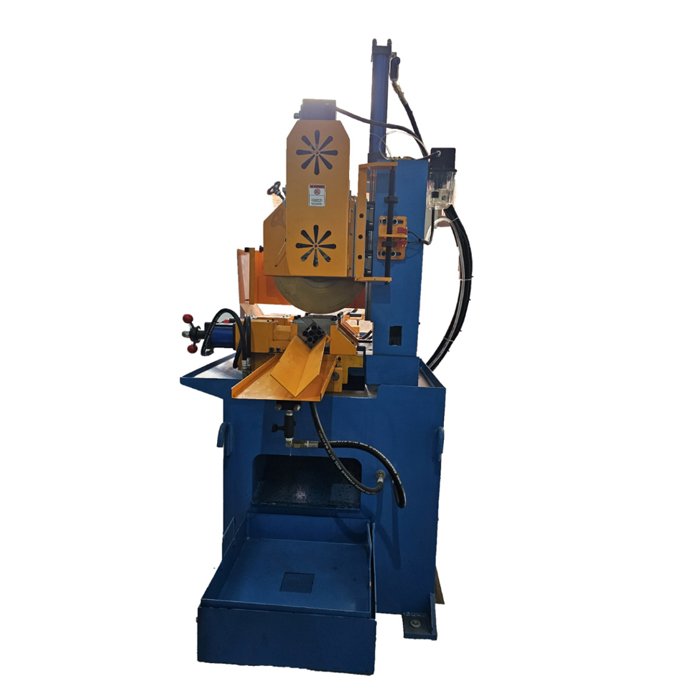

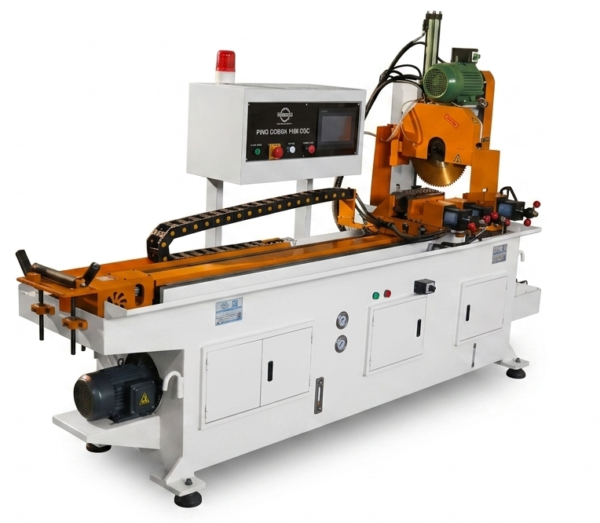

King Cobra 1000 CNC Fully Automatic Cold Saw
Fully Automatic Precision Cutting for Heavy Pipes & Sections
The King Cobra Model-1000 is a high-performance CNC solution engineered for high-volume, burr-free cutting of heavy-duty pipes, tubes, and sections. Designed for versatility, it handles everything from ordinary carbon steel to challenging stainless steel and aluminum alloys with repeatable accuracy.
Why Choose the Model-1000?
1. High-Torque Performance
Equipped with a heavy-duty cutting head featuring Full 4 Helical Gears, the machine delivers maximum torque and extended gear life compared to standard configurations.
2. Servo-Driven Precision
The tube feeding system is powered by a high-precision Mitsubishi servo motor. Operators simply input the required length in millimeters for repeatable, millimetric accuracy across large batches.
3. Waste Reduction Technology
Our proprietary tail material pulling function ensures that surplus material is utilized to the fullest, significantly reducing “scrap” waste and lowering your cost-per-cut.
4. Intelligent Monitoring
-
Self-Inspection: The system features fault-point self-inspection and automatic alarms, pinpointing issues instantly to slash repair time.
-
Intuitive Controls: The system automatically calculates sizes and lengths, making data input straightforward for the operator.
-
Longevity: An integrated automatic lubrication system ensures all moving parts remain at peak performance without manual intervention.
Material Versatility: The adjustable clamping force allows the Model-1000 to transition from thick-walled industrial pipes to thin-walled sections without damaging the workpiece.
| Spindle Motor | 5 HP |
| Spindle RPM | Infinitely variable |
| Cooling System | Automatic coolant circulating with 1/8 HP Electrical Pump |
| Lubrication | Automatic |
| Saw Blade | H.S.S. Blades, Diameter 300~450mm Arbor Hole 32mm Pin Hole 11mm x 63mm |
| Max Vice Open | 120mm |
| Degree Range | 90 Degree |
| Operation | PLC Based Fully Hydraulic Servo Controlled Type |
| Servo | Mitsubishi 1 KW with Feeding Accuracy of +- 0.1mm |
| Hydraulic System | 3 HP Hydraulic 25~35 Kg/cm2 Pressure |
| Machine Weight | 1480 Kgs |
| Machine Dimensions | 3450mm(W) x 1850mm(L) x 850mm(H) |
| Round Pipe | 120mm x 5mm |
| Angle Iron | 100mm x100mm x 5mm |
| Square Pipe | 100mm x 100mm x 5mm |
| Solid Bar | 50mm |
| Solid Bar Square | 50mm x 50mm |
| V-Shape Clamping Jaws | Using Special clamping jaw can cut tube 2pcs or 4pcs or 6pcs at one time depending upon Saw Capacity. |
| Sr.No. | Description | Qty. | Price | |
| 1. | KING COBRA MODEL 1000 CNC [Fully Automatic Hydraulic vertical Cold Saw] | 1 | Rs. | 12,25,000.00 |
| Optional Accessories | ||||
| 2. | Clamping Jaws for Different sizes [Extra] | 1 | Rs. | 4,600.00 |
FEATURES
- Sawhead travels vertically on the hard and ground precision slide which provides smooth and precision cutting with longer blade life.
- Specialdesigned backlash free helical gear train with heat treated gear box to ensure quality performance in heavy and torque cutting.
- Specialdesigned floating type material feeding carriage for smooth material
- Aspecially designed main vice, with strong and reliable clamping capacity
- Specialthird vice for cutting tail piece/End Piece in the same cutting cycle.
- Solidstate electronic control panel with
- Allcontrols are centrally located with symbols for ease of
- Cuttingquantity can be easily set with numeric
- Withautomatic stop when no material is in
- Heavyduty chip collecting tray is built-in for convenient cleaning and
- Robuststeel
- InfinitelyVariable Saw Blade RPM for optimum Cutting
SCOPE OF WORK
- Basicmachine
- Hydraulic
- HMIDigital read out feeding length adjust
- Onepackage hand tools with tool
TERMS & CONDITIONS
RATES : Ex-Works
PACKING : At Actuals
TAXES : 18% GST or as applicable at that time. PAYMENT : 40%advance and balance at the time of delivery. DELIVERY : 45 Days after the confirmation of order.
GUARANTEE : One year against manufacturing defects.
