Overview

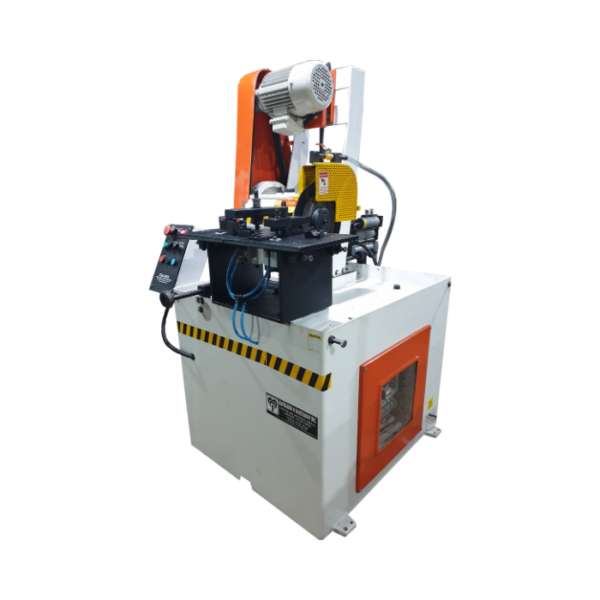

Trimming tubes after they have been bent or shaped presents a unique manufacturing challenge due to irregular geometry and shifting centers of gravity. This Semi-Automatic Pneumatic Pipe Cutting Machine is specifically built to solve this bottleneck. By automating both the clamping and cutting cycles using high-performance pneumatics, the machine eliminates operator fatigue, drastically reduces cycle times, and ensures flawless cutting consistency on pre-formed profiles.

Specialized Workholding & Pneumatic Precision

Unlike conventional pipe cutters designed exclusively for straight stock, this machine features:

• Adaptive Pneumatic Clamping: Equipped with a specialized pneumatic vise assembly that can be outfitted with custom jaws or fixtures. This allows it to rigidly grip bent, hydroformed, or irregular-shaped tubes right at the point of the cut without distorting or marking the pre-bent profiles.

• Fully Pneumatic Automated Cutting: The entire downward cutting stroke is driven by a precision pneumatic cylinder. With adjustable feed rates, it ensures smooth blade penetration and consistent cutting pressure, resulting in exceptionally clean, burr-free edges that require minimal secondary finishing.

Engineered for Post-Bending Workflows

This machine excels in two critical manufacturing scenarios: trimming away the inevitable “excess” or straight leg left over after a mandrell or roll-bending process, and cutting pre-bent tubes at strict, specific angles. Its flexible positioning deck allows operators to align complex bent geometries accurately against the blade path, making it a reliable workhorse for turning out perfectly sized, ready-to-weld tubular components.

Technical Features at a Glance

Applications

• Post-Bend Trimming: Removing the excess straight clamping allowance (legs) left behind by CNC or manual mandrel pipe bending machines.

• Angular End Trimming: Cutting the ends of bent tubes at highly specific angles so they flush-fit or cop-fit against other structural profiles.

• Hydroformed Component Trimming: Cutting and squaring off irregular ends of hydroformed or press-stamped tubular parts.

• Manifold & Loop Cutting: Precision cutting of tight-radius u-bends, coils, and multi-bend manifold tubes.

Target Industries

• Automotive & Exhaust Manufacturing: Trimming pre-bent exhaust pipes, downpipes, manifolds, roll cages, and structural chassis tubes.

• Bicycle & Motorcycle Fabrication: Cutting and trimming complex bent frame tubes, handlebars, and exhaust assemblies.

• HVAC & Refrigeration: Cutting pre-bent copper or aluminum cooling loops, condenser coils, and intricate distribution piping.

• Fitness & Gym Equipment: Trimming the heavy-gauge, ergonomically bent frames used in commercial workout machinery.

• Furniture Manufacturing: Processing bent tubular steel components for modern chairs, desks, and architectural fixtures.

• Aerospace & Defense: High-precision trimming of pre-formed fluid, hydraulic, and fuel lines.
