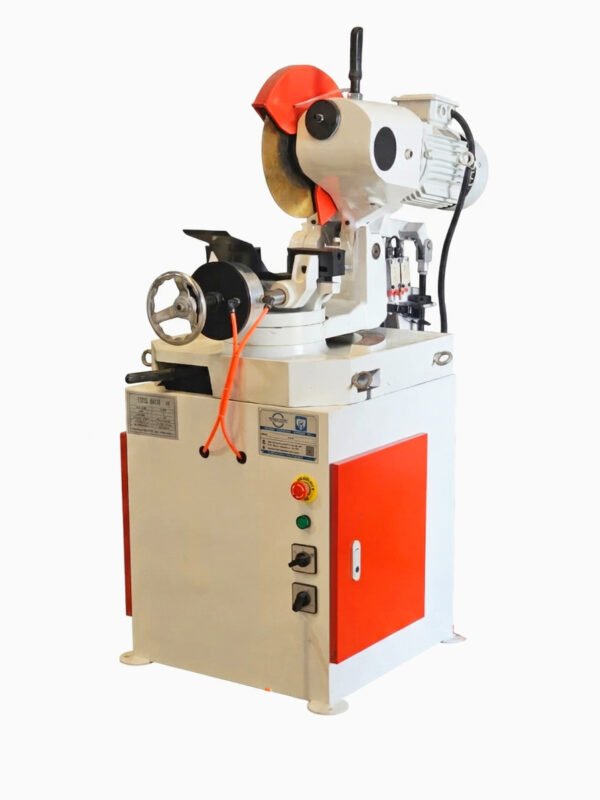

Maxsaw 750

The Semi-Automatic Pneumatic Pipe Cutting Machine is a high-efficiency production tool designed for fast and precise cutting of pipes up to 100mm in diameter and 3mm in wall thickness. Featuring a robust combination of pneumatic automatic clamping and hydro-pneumatic automatic cutting cylinders, it ensures secure material hold and smooth, burr-free cuts. The versatile cutting head adjusts easily to deliver accurate straight and miter cuts at angles ranging from 30° to 90°, making it an ideal choice for high-volume fabrication environments.

Overview

This industrial-grade Semi-Automatic Pneumatic Pipe Cutting Machine engineered to deliver high precision, speed, and reliability in metal fabrication. The machine streamlines the cutting process by automating material clamping and blade feed, allowing the operator to focus purely on material positioning and cycle activation.

Advanced Actuation & Cutting Mechanism

Equipped with a dual-system actuation setup, the machine utilizes:

Pneumatic Clamping: A heavy-duty pneumatic vise automatically secures the pipe before the blade descends. This ensures zero material slippage, enhances operator safety, and prevents pipe deformation.
Hydro-Pneumatic Cutting: The cutting action is powered by a hydro-pneumatic cylinder. By combining the speed of pneumatics with the smooth, controlled regulation of hydraulics, the machine achieves an incredibly stable blade feed. This minimizes vibration, extends blade life, and produces clean, burr-free edges.

Material Capacity & Angular Versatility

Built for versatility, the machine effortlessly handles pipe diameters up to 100mm with a wall thickness of up to 3mm. A standout feature is its adjustable cutting head assembly, which allows operators to seamlessly transition between standard straight 90° cuts and complex miter angles down to 30°. The angular adjustment is quick, precise, and locks rigidly into place to maintain accuracy across high-volume production runs.

Key Technical Summary

Feature	Specification
Operation Type	Semi-Automatic (Manual load, Auto-clamp, Auto-cut)
Clamping Mechanism	Pneumatic Cylinder
Cutting Feed Mechanism	Hydro-Pneumatic Cylinder
Cutting Angle Range	30° to 90° (Miter and Straight cutting)
Maximum Pipe Diameter	100 mm
Maximum Wall Thickness	3 mm

Applications

Miter and Straight Cutting: Perfect for preparing pipes that require precise angular welding or interlocking joints.
Mass Production Cutting: Ideal for repetitive, high-speed cutting of tubes, pipes, and structural profiles.
Framework Fabrication: Cutting components for racks, trusses, scaffolding, and safety handrails.
Exhaust and Intake Piping: Precision cutting of thin-walled tubing for automotive and ventilation systems.

Target Industries

Automotive & Aerospace: For cutting exhaust pipes, chassis frames, roll cages, and structural tubing.
Furniture Manufacturing: Mass production of steel/aluminum frames for chairs, tables, and modular office setups.
Construction & Architecture: Fabrication of handrails, gates, window frames, trusses, and scaffolding systems.
HVAC (Heating, Ventilation, & Air Conditioning): Cutting ducting pipes, ventilation shafts, and refrigerant tubing.
General Engineering & Job Shops: Versatile contract manufacturing shops requiring quick setups for varying pipe sizes and angles.
