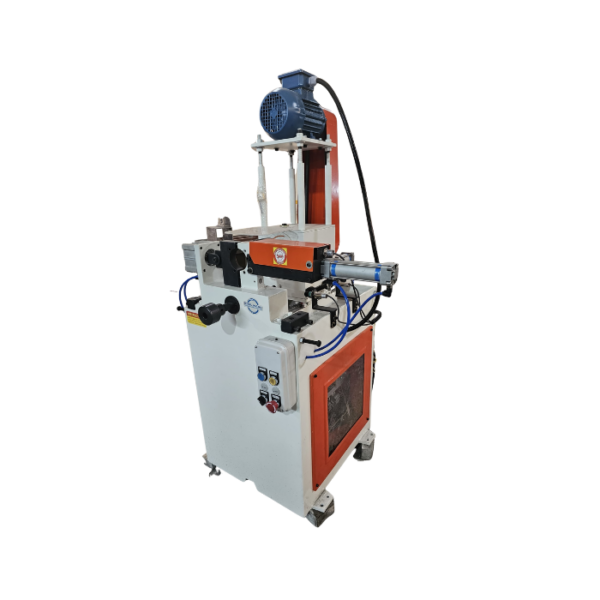

Precision 50mm Pneumatic Single-End Pipe Facing & Chamfering Machine

The 50mm Pneumatic Single-End Chamfering Machine is an agile, high-performance solution for finishing round pipes and bar stock. Engineered for pipes up to 50mm in diameter, it utilizes a dual-action pneumatic system for instant clamping and smooth cutter feeding. This machine simultaneously performs internal and external chamfering along with flat-face processing, ensuring weld-ready ends in seconds. Its compact design and simplified tooling make it an essential tool for high-volume production in the automotive, furniture, and HVAC industries.

Product Overview

Achieve industrial-grade precision with our 50mm Pneumatic Single-End Facing and Chamfering Machine. This model is specifically optimized for manufacturers working with smaller diameter tubing who require consistent accuracy without the overhead of heavy hydraulic systems. By combining air-powered clamping with a hydro-pneumatic feed control, this machine delivers a smooth, chatter-free finish on a wide variety of materials, including stainless steel, aluminum, and copper.

Advanced Finishing Capabilities

Designed to handle the most common tube sizes used in modern manufacturing, the 50mm model is built for “one-touch” operation. Once the tube is positioned, the pneumatic system secures the workpiece and advances the triple-blade cutter head to perform Inner Chamfer (ID), Outer Chamfer (OD), and Facing in one seamless motion.

Key Specifications & Features:

Processing Capacity: Precision-tuned for round pipes and tubes up to 50mm (Ø).
Dual-Speed Tool Head: Features adjustable speeds (e.g., 900–3200 RPM) to handle different material hardness, from soft aluminum to toughened stainless steel.
Hydro-Pneumatic Feed: Uses a specialized oil-dampened air cylinder to ensure constant cutting pressure, resulting in a superior surface finish and longer blade life.
Rapid Changeover: Specially designed clamping jaws can be swapped in under two minutes for different tube diameters.
Clean, Burr-Free Results: Removes sharp edges instantly, preparing pipes for assembly, threading, or welding.
Compact & Portable: With a manageable weight and small footprint, it easily integrates into existing production cells or workstations.

Typical Applications:

Small Parts Manufacturing: Spacers, bushings, and small structural tubes.
Bicycle & Lightweight Vehicle Frames: Clean finishing for aluminum and alloy tubing.
Medical & Lab Equipment: High-precision deburring for stainless steel components.
Home Appliances: Finishing copper piping for refrigeration and HVAC units.

Why Choose the 50mm Pneumatic Model?

When speed and precision are your top priorities, the pneumatic 50mm model outperforms manual methods by a factor of ten. It eliminates the inconsistency of hand-grinding, reduces worker fatigue, and ensures every single piece meets your quality standards.
