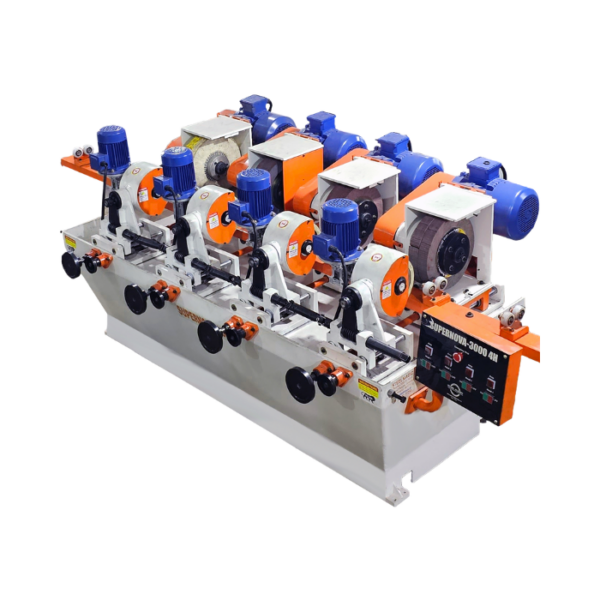

Four Head

The Multi-Head Circular Profile Polishing Machine is a high-efficiency solution designed for continuous finishing of round pipes and bars up to 100mm in diameter. Featuring a modular design, customers can select the precise number of heads required to achieve finishes ranging from matte and satin to a high-gloss mirror shine in a single operation. Equipped with variable feed speeds, a synchronized single-point center adjustment, and a single-point wheel tilt system, this machine offers unparalleled precision, rapid setup times, and consistent surface quality for high-volume manufacturing.

The Modular Multi-Head Centerless Polishing Machine represents the pinnacle of efficiency for the surface processing of round tubes, pipes, and solid bars. Engineered for versatility, the machine’s modular architecture allows customers to customize the number of polishing heads based on their specific cycle time and surface finish requirements—whether scale removal, matte, satin, brushed, or a flawless, high-gloss mirror finish.

Each processing head is 100mm wide and utilizes two 350mm x 50mm x 181mm polishing wheels, providing a generous abrasive contact area for highly consistent stock removal and blending. To maximize operational efficiency and drastically reduce downtime during changeovers, the machine features a synchronized single-point center adjustment mechanism alongside a unified wheel tilt system that allows operators to adjust the inclination of all contact wheels simultaneously from one station. Combined with a variable-speed tube traversing mechanism, operators can fine-tune the feed rate and polishing pressure to perfectly match the metallurgical traits of the workpiece, delivering an automated, repeatable, and premium-grade surface finish every time.

Technical Highlights

Modular Head Configuration: Scalable from single to multi-head setups depending on the desired throughput and finish complexity.
Dual-Wheel Spindles: Each 100mm wide head carries two $350\text{mm} \times 50\text{mm} \times 181\text{mm}$ wheels for extended abrasive life and superior coverage.
Smart Synchronization: Single-point adjustments for both machine centering and contact wheel tilting eliminate the need to configure heads individually.
Variable Feed Controls: Adjustable tube traversing speed allows precise control over the dwell time of the material under the polishing wheels.

Possible Applications

This centerless round polishing machine is ideal for industries utilizing cylindrical metal components, including:

Decorative & Architectural Metalwork: Polishing stainless steel and brass round tubes for handrails, balustrades, staircase pillars, and architectural accents.
Automotive & Aerospace Components: Surface finishing of shock absorber rods, hydraulic cylinder shafts, exhaust pipes, steering columns, and pneumatic bars.
Sanitary & Kitchenware Fittings: High-gloss or satin finishing of brass and stainless steel plumbing pipes, towel rails, and shower columns prior to plating or assembly.
Furniture & Consumer Goods: Processing round metal legs for tables, lighting fixtures, curtain rods, and high-end retail clothing racks.
Industrial & Hydraulic Components: Precision finishing of precision ground bars, linear guide shafts, and heavy-duty rollers to reduce friction and meet exact surface roughness tolerances ( $R_a$ values).
